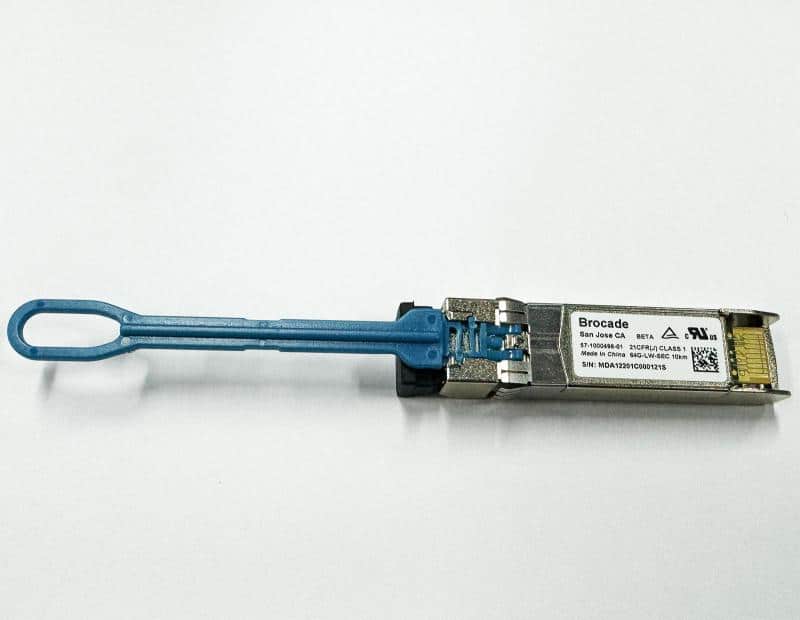

Brocade 57-1000496-01 (XBR-000468) 64G FC SFP+ LWL, 10 km, LC

 5/5

🧰 Features

Compliant with SFF-8472 Rev. 12.3 for real-time diagnostics (Tx/Rx power, bias current, temperature, voltage)
Eye-safe: IEC 60825-1 Class 1/CDRH Class 1 laser
RoHS 6 compliant
Designed for Brocade Gen 7 switches and directors
Requires ~6 dB attenuation for loopback testing

📦 Part Numbers

Single Pack: XBR-000468
8-Pack: XBR-000469

Description

Applications : SAN longue portée, en neuf, en occasion, en reconditionné.

The Brocade 57-1000496-01 (XBR-000468) is a 64G Fibre Channel (FC) SFP+ long wavelength (LWL) optical transceiver module designed for high-speed data center connectivity. Here’s a detailed breakdown of its key specifications and features :

🔧 Technical Specifications

Form Factor: SFP+ (Small Form-Factor Pluggable)
Data Rate: Supports 64G, 32G, and 16G Fibre Channel (57.8Gb/s, 28.05Gb/s, 14.025Gb/s)
Connector Type: LC duplex
Wavelength: 1304.5 nm to 1317.5 nm
Reach: Up to 10 km over single-mode fiber (SMF)
Transmit Power: –4.5 dBm to +4.2 dBm
Receive Sensitivity: –8.9 dBm minimum
Optical Return Loss: –26 dB max
Power Dissipation: 2.0W
Hot-Pluggable: Yes
